The printed guide is located in the box and provides guidance for a correct installation.
Or download here:
The best place for a cabinet is in plain sight making it easy to spot in case of a cardiac arrest. The cabinet needs to be installed on a flat surface to prevent deforming of the backplate. Preferably outdoor so the cabinet can be accessed at all times. For a SPH & 247 a power socket is needed. The cabinet can withstand weather conditions but should never hang in direct sunlight.
Yes, all Rotaid cabinets can be installed on a totem. The instruction manual for installing the cabinet can be downloaded here.
The ideal mounting position for the Rotaid cabinet is 150 centimeters (59 inches), measured from the center of the cabinet to the floor. Please note: this may not apply to all countries.
No, Rotaid Solid Plus cabinets do not need power.
Yes, the Rotaid Solid Plus Heat LED does need a power supply.
Yes, the Rotaid 24/7 does need a power supply.

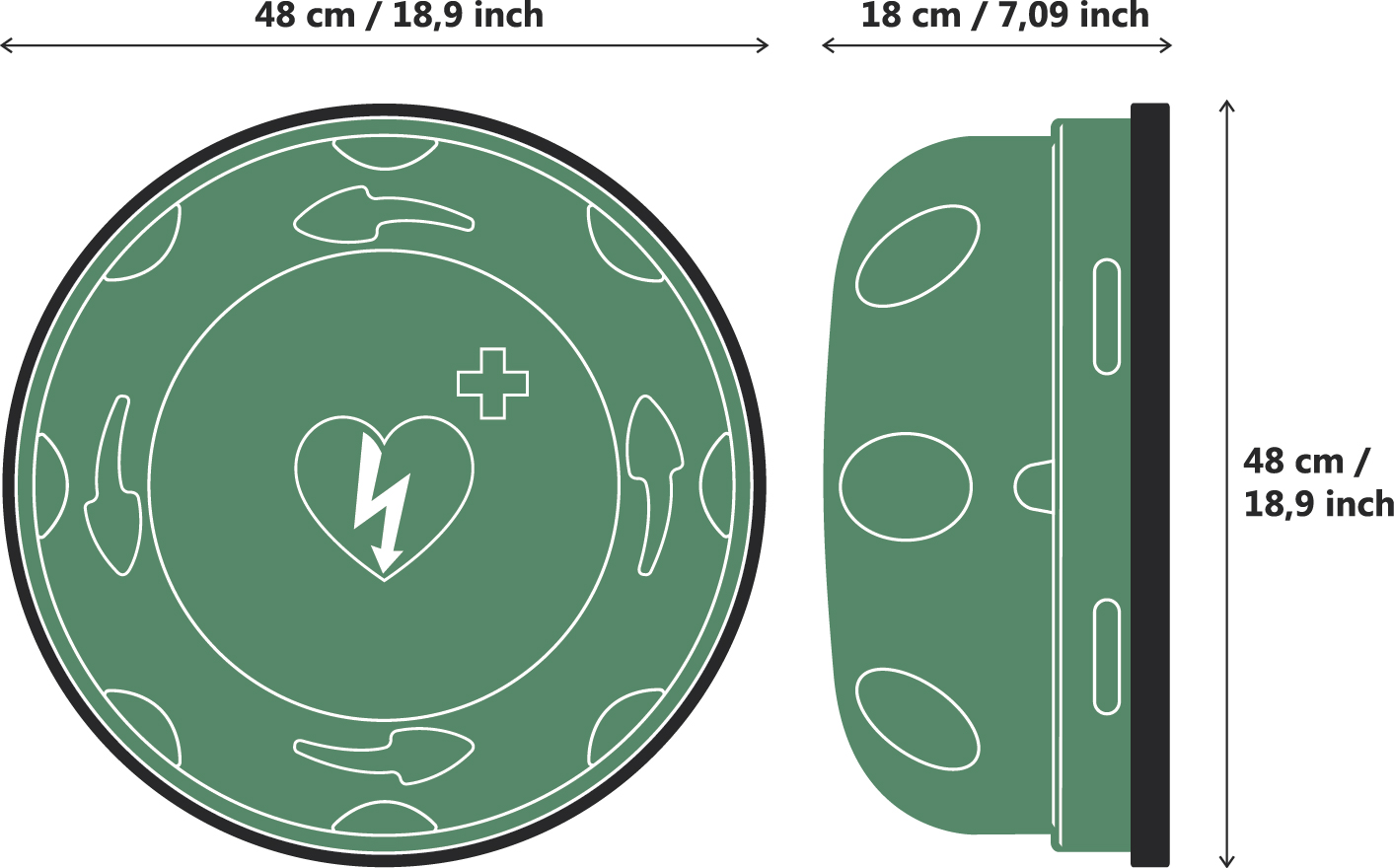

Rotaid's cabinets have the following dimensions:
- Length: 48 cm / 18,9 inch
- Width: 48 cm / 18,9 inch
- Depth: 18 cm / 7,09 inch
- Weight Rotaid 24/7: 4 kg / 8.82 lb
- Weight Rotaid Solid Plus: 1,8 kg / 4.1 lb
- Weight Rotaid Solid Plus Heat: 3,2 kg / 7.05 lb
Follow this link to download the Rotaid 24/7 installation manual: Rotaid247_installationmanual.pdf
Follow this link to download the installation manual: Rotaid_solidplus_heat_im.pdf
Follow this link to download the installation manual for the Rotaid Solid Plus: Rotaid_solidplus_im.pdf
